Lithologic assessment provides a way to determine the quality of a lithologic model on an individual material basis. The concept and procedure to do this is:

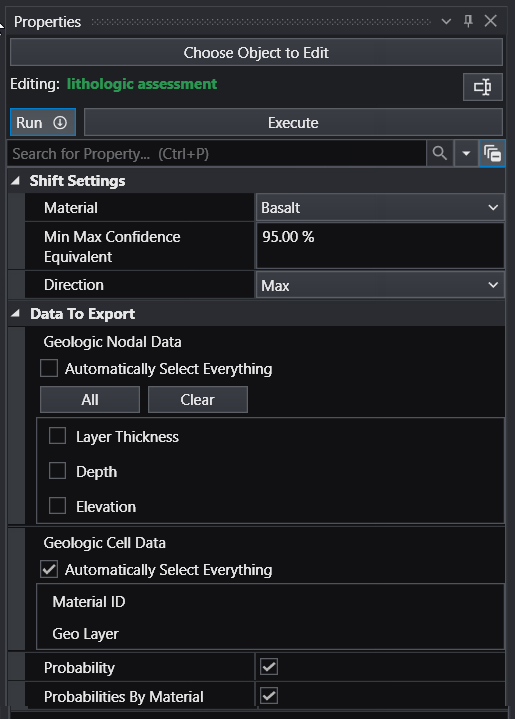

Select the material to be assessed (Basalt shown below)
Choose a Min Max Confidence Equivalent value (95% shown below)
- A 50% confidence will result in the Min or Max being equal to the nominal model
- High confidence values (90+%) will show greater difference from nominal
Select the Direction (Max or Min)
Choose the data to be exported
Module Input Ports
- Realization [Special Field] Accepts output from lithologic modeling
Module Output Ports
- Output Field [Field] Outputs the subsetting level
- Deviations Field [Field] Outputs the deviations from the nominal kriged probabilities
