Groundwater and Solute Transport modeling is a sub discipline of environmental sciences with unique needs. Modeling has long utilized 3D simulations, but the ability to visualize the results has lagged far behind the simulation technology.  Earth Volumetric Studio have long offered professional level presentation tools worthy of the current state-of-the-art in modeling, and EnterVol now opens that door to GIS professionals around the world.

Visualization of groundwater and solute transport modeling results can be performed from third party modeling systems such as USGS MODFLOW, MT3D, GMS©, Groundwater Vistas© and Visual MODFLOW© using C Tech’s tools to convert these modeling outputs into EFF format.

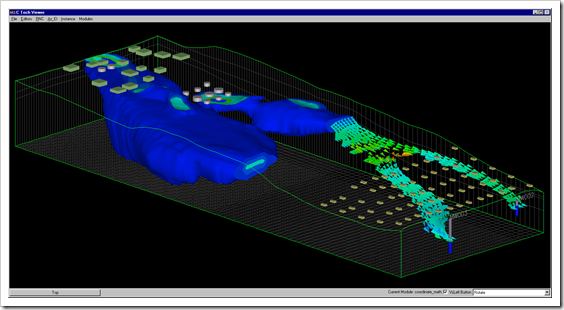

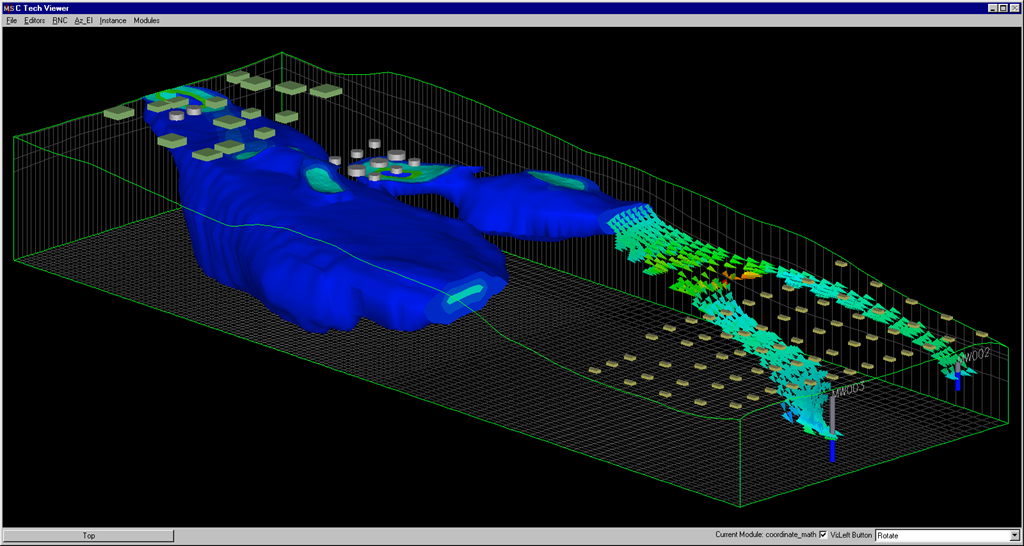

In conjunction with Lawrence Livermore National Laboratory and IT Group, C Tech performed the visualization and animation of the output from a Groundwater Vistas MODFLOW and MT3D99 simulation of a large industrial complex in the central valley area of California.  This site exhibits highly channelized flow which is evidenced by the flow paths. Note that flow in the lower aquifer crosses underneath the upper channels at about 30 degrees!
